Zeesung® 知崇新能源
番缆集团

专业新能源·创造时代新功能Focusing On New Energy
Creating New Function Of The Times

Focusing On New Energy · Creating New Function Of The Times

注册成立FoundedEstablished
2009 2009
总投资额Total InvestmentTotal Investment
15,000 Over RMB150million
研发工程师R&D EngineersR&D Engineers
27 27
2025 年销售额2025 Revenue2025 Revenue
20,000 RMB200million
公司简介 About the Company

从新定义 引领未来Redefining the Standard, Leading the Future

广州知崇新能源科技有限公司成立于 2009 年,隶属于广州番禺电缆集团,是一家覆盖新能源汽车交直流充电枪、充电插座、充电线缆、高压线束等产品研发、生产、销售及服务等业务为一体的国家级高新技术企业。Guangzhou Zeesung New Energy Technology Co., Ltd. was founded in 2009 as a subsidiary of Guangzhou Panyu Cable Group. The company is a national high-tech enterprise specialising in the R&D, manufacturing, sales and service of AC/DC EV charging guns, charging inlets, charging cables, high-voltage wiring harnesses and related products.

公司简介 About the Company

专业团队 技术领先Expert Team, Technology Leadership

知崇公司拥有行业资深研发团队、专业化的生产团队、高效的售后服务团队、国内领先的测试实验室及配套实验人员。自成立以来先后通过了 ISO 9001:2015 质量体系认证、IATF 16949:2016 汽车质量体系认证、ISO 14001:2015 环境管理体系认证、ISO 45001:2018 职业健康安全管理体系认证。Zeesung has built an experienced R&D team, a professional manufacturing team, an efficient after-sales service team, and a leading domestic testing laboratory with dedicated technical personnel. Since its establishment, the company has achieved certification to ISO 9001:2015, IATF 16949:2016, ISO 14001:2015 and ISO 45001:2018.

产品先后通过了 CQC、TUV、UL 等认证,与比亚迪、广汽、小鹏、公牛、星星充电、特来电等 20+ 知名车企与新能源科技企业建立长期合作伙伴关系;同时积极布局国际市场,助力外贸高质量发展。Its products have received CQC, TUV and UL certifications, and the company has established long-term partnerships with over 20 well-known automotive and new energy technology companies including BYD, GAC, XPENG, Bull EV Charger, Star Charge and TELD. Zeesung is also actively expanding into international markets to drive high-quality export growth.

公司简介 About the Company

绿色发展 共创未来Green Development, Co-Creating the Future

知崇持续秉承 "诚信、创新、快速、务实、共赢" 的经营理念,致力于打造专业化、定制化新能源汽车充电连接部件整体解决方案,为客商朋友提供高品质、高标准的服务。Zeesung operates under the guiding principles of integrity, innovation, speed, pragmatism and mutual success. The company is committed to delivering professional, customised charging connectivity solutions for new energy vehicles, providing clients and partners with high-quality, high-standard services.

更好地服务经济社会发展与美丽中国、绿色中国建设,共同构建更加美丽宜居的世界。By supporting economic and social development alongside China's green transformation, Zeesung works with its partners to build a cleaner, more liveable world for all.

公司简介 About the Company

创新产品 战略布局Innovation-Driven, Strategically Positioned

随着智慧能源的新技术、新模式、新业态蓬勃兴起,知崇积极响应国家碳减排政策和经济发展新常态,主动把握新一轮能源革命机遇,制定企业战略目标,坚持 "创新引领" 和 "管理升级" 双轮驱动,走新时代新能源高质量发展之路。As smart energy technologies, new business models and emerging industries continue to flourish, Zeesung has proactively responded to China's carbon reduction policies and the evolving economic landscape. Seizing the opportunity of a new energy revolution, the company has set clear strategic goals and adopted a dual-engine approach of innovation-led growth and management enhancement to drive high-quality development in the new energy sector.

重点围绕新能源电气连接零部件,涵盖充电枪、充电插座、高压线束等产品;持续升级智能智造生产线,大力拓展充电枪 / 座成品业务,以独有的企业优势为客户提供精益求精的产品。The company's focus centres on new energy electrical connection components — including charging guns, charging inlets and high-voltage wiring harnesses — while continuously upgrading its intelligent manufacturing lines and expanding its finished charging connector business to deliver precision products with a distinctive competitive edge.

知崇生产力 Zeesung's Productivity

制造规模Manufacturing Scale

行业领先的自动化数字化生产设备设施,具备大规模量产能力。Industry-leading automated and digitalised production facilities with large-scale mass production capabilities.

生产设备Production EquipmentEquipment & Lines
350 Over350
units
多产线并行运作,配备大量自动化数字化设备,满足大规模量产与快速扩产能力。Multiple lines operating in parallel, equipped with extensive automation and digital systems to support large-scale and rapid capacity expansion.
生产厂房面积Factory Floor AreaFactory Area
15,000+ 15,000+
宽阔厂区布局合理,为持续扩大产能提供坚实空间保障。Spacious, well-organised factory layout providing a solid foundation for ongoing capacity growth.
知崇生产力 Zeesung's Productivity

认证与专利Certifications & Patents

多维度品质背书,技术自主可控,合规进入全球主流市场。Multi-dimensional quality credentials, independent technology control, and compliant access to global mainstream markets.

国内外权威认证Authoritative CertificationsGlobal Certifications
30+ 30+
products
通过 CQC、TUV、UL 等国内外权威机构认证,合规进入全球主流市场。Certified by CQC, TUV, UL and other internationally recognised bodies, enabling compliant entry into global mainstream markets.
自主专利技术Proprietary PatentsPatents
73 73
in total
发明专利 10 项,实用新型专利 43 项,构建全面的技术壁垒。10 invention patents and 43 utility model patents, building a comprehensive technology barrier.
知崇生产力 Zeesung's Productivity

产能卓越Outstanding Production Capacity

充电枪与插座量产规模全面领先,适配全球充电标准。Leading mass production scale for charging guns and inlets, compatible with global charging standards.

充电枪Charging GunsCharging Connectors
70+ 700,000+
万条 / 年units/year
覆盖 AC / DC 多规格型号,满足国内外主流车企配套需求。Covers multiple AC/DC specifications to meet supply requirements of mainstream domestic and international automakers.
充电插座Charging InletsCharging Inlets
60 600,000
万个 / 年units/year
支持国标直流 / 交流、欧标直流 / 交流等主流充电标准。Supports GB standard and European standard AC/DC mainstream charging protocols.
知崇生产力 Zeesung's Productivity

量产领先Mass Production Leadership

充电线缆与高压线束一体化供货保障,全程质量管控。Integrated supply of charging cables and high-voltage wiring harnesses with full-process quality control.

充电线缆Charging CablesNEV Cables
1.5 150
亿米 / 年million metres/year
常规充电线缆、液冷充电线缆、高压线束全品类覆盖,稳定供货。Full range coverage of standard charging cables, liquid-cooled charging cables and high-voltage wiring harnesses, with stable supply.
高压线束High-Voltage Wiring HarnessesHV Harnesses
350 3.5
万条 / 年million units/year
从充电线缆到车规级高压线束一体化供货,全程质量管控,助力整车厂降本增效。Integrated supply from charging cables to automotive-grade high-voltage wiring harnesses, with full-process quality control to help automakers reduce costs and improve efficiency.
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
质量管理体系认证证书 GB/T 19001-2016 / ISO 9001:2015Quality Management System Certificate — GB/T 19001-2016 / ISO 9001:2015
颁发机构 / Issued By
中安认证(北京中安质环认证中心有限公司)Zhong'an Certification (Beijing Zhong'an Quality & Environment Certification Centre Co., Ltd.)
认可机构 / Accreditation
IAF · CNAS
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
环境管理体系认证证书 GB/T 24001-2016 / ISO 14001:2015Environmental Management System Certificate — GB/T 24001-2016 / ISO 14001:2015
颁发机构 / Issued By
中安认证(北京中安质环认证中心有限公司)Zhong'an Certification (Beijing Zhong'an Quality & Environment Certification Centre Co., Ltd.)
认可机构 / Accreditation
IAF · CNAS
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
职业健康安全管理体系认证证书 GB/T 45001-2020 / ISO 45001:2018Occupational Health & Safety Management System Certificate — GB/T 45001-2020 / ISO 45001:2018
颁发机构 / Issued By
中安认证(北京中安质环认证中心有限公司)Zhong'an Certification (Beijing Zhong'an Quality & Environment Certification Centre Co., Ltd.)
认可机构 / Accreditation
IAF · CNAS
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
汽车质量管理体系认证证书 IATF 16949 — 第一版Automotive Quality Management System Certificate — IATF 16949, 1st Edition
颁发机构 / Issued By
Bureau Veritas Certification(必维国际检验集团)Bureau Veritas Certification
认可机构 / Accreditation
IATF · Bureau Veritas
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
高新技术企业证书(证书编号:GR202344003434)High-Tech Enterprise Certificate (No. GR202344003434)
颁发机构 / Issued By
广东省科学技术厅 · 广东省财政厅 · 国家税务总局广东省税务局Guangdong Provincial Department of Science & Technology · Guangdong Provincial Department of Finance · State Taxation Administration, Guangdong Tax Bureau
认可机构 / Accreditation
国家高新技术企业认定管理工作领导小组National High-Tech Enterprise Recognition Management Leadership Group
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
创新型中小企业Innovative Small & Medium Enterprise
颁发机构 / Issued By
广东省工业和信息化厅Guangdong Provincial Department of Industry and Information Technology
认可机构 / Accreditation
工业和信息化部(省级认定)Ministry of Industry and Information Technology (Provincial Level)
资质认证 Qualifications

严格认证体系全程品质护航Rigorous Certification System,Quality Assurance Throughout

认证名称 / Certification
数据管理能力成熟度等级证书 DCMM 稳健级(3级)Data Management Capability Maturity Certificate — DCMM Level 3 (Stable)
颁发机构 / Issued By
中国电子信息行业联合会China Electronics Industry Association (CEIA)
认可机构 / Accreditation
工业和信息化部(国家标准 GB/T 36073-2018)Ministry of Industry and Information Technology (National Standard GB/T 36073-2018)
专利证书 Patents

自主研发 · 专利护航Proprietary R&D · Patent-Protected

1/4
产品认证 Product Certifications

多重认证 · 品质背书Multi-Certified · Quality Assured

1/3
荣誉资质 Honours & Awards

载誉前行 · 实力见证Recognised Excellence · Proven Strength

1/2
合作品牌 Partners
Nissan日产
APTIV安波福
BorgWarner博格华纳
青山新能源Tsingshan
广汽集团GAC
特来电TELD
永联科技Phihong
Winline永联
比亚迪BYD
RANSSEMI瑞萨半导体
星星充电Star Charge
方程豹Bao
广汽能源GAC Energy
LUXSHARE立讯精密
公牛充电桩BULL
吉利Geely
CSG科大智能CSG Smart
KSTAR科士达
SINEXCEL东北微网
小鹏XPENG
ZTE中兴
YUNDEE中科三品
TOYOTA丰田
五菱新能源Wuling
仰望Yangwang
LINCHR领充
英飞凌Infineon
能效电池N-Power
HGTECH华工科技
RHEIDON瑞顿
力达电器Lida
CNLD万城万充
东风汽车DFM
理工华创RIT
Hyper昊阳Hyper

新能源电气连接知崇全系覆盖New Energy Electrical Connectivity —Full Range Coverage by Zeesung

深耕新能源电气连接十余年,四大核心产品线
全面覆盖充电与传输需求。
Over a decade of expertise in new energy electrical connectivity, with four core product lines covering all charging and transmission needs.

01
充电枪系列Charging Gun Series
AC / DC 多规格充电枪,覆盖国标、欧标、美标主流协议。AC/DC charging guns in multiple specifications, covering GB, European and North American mainstream protocols.
02
充电插座系列Charging Inlet Series
支持国标、欧标,适配全球主流车型。Supports GB and European standards, compatible with mainstream vehicle models worldwide.
03
高压线缆系列High-Voltage Cable Series
交直流充电线缆、液冷充电线缆等全品类覆盖,性能稳定可靠。Full range of AC/DC charging cables, liquid-cooled charging cables and more, with stable and reliable performance.
04
高压线束系列High-Voltage Wiring Harness Series
充电插座及线束一体化供货,助力整车厂降本增效。Integrated supply of charging inlets and wiring harnesses, helping automakers reduce costs and improve efficiency.
主要产品 Major Products
充电枪系列Charging Gun Series

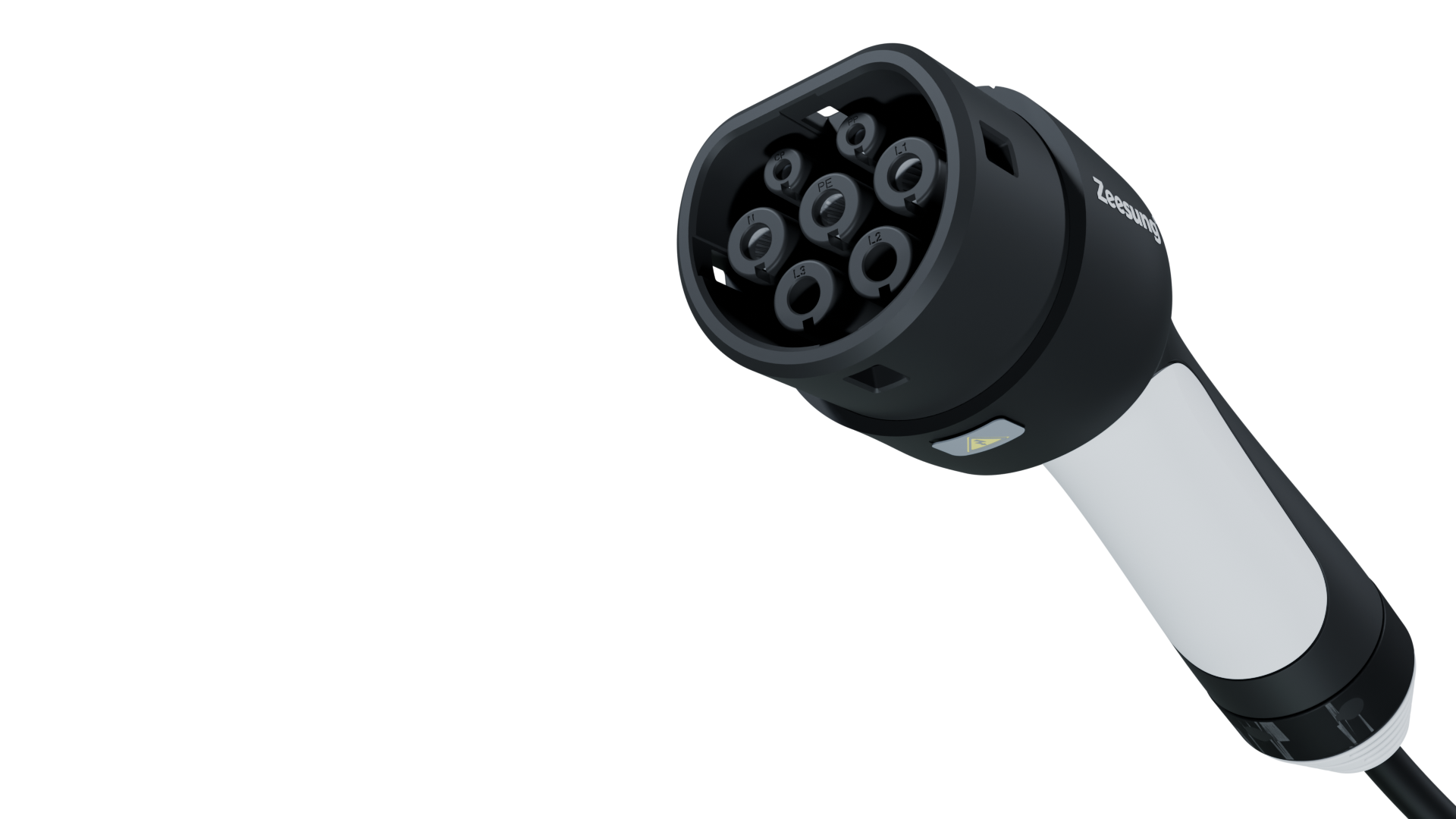

欧标车端/桩端双头枪European Type 2 Dual-Head Charging Gun(Vehicle & Station End)

电流类型Current Type交流AC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
13A/20A/32A13A / 20A / 32A
额定工作电压Rated Operating Voltage
单相 250V AC/三相 480V ACSingle-phase 250V AC / Three-phase 480V AC
绝缘电阻Insulation Resistance
≥500MΩ(DC1000V)≥500MΩ (DC1000V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 EN 60332-1-2 2004 规定Complies with EN 60332-1-2: 2004
防护等级Protection Rating
IP55 工作状态IP55 (operating)
产品设计依据Design Standards
IEC 62196-1-2014/IEC 62196-2-2016IEC 62196-1-2014 / IEC 62196-2-2016
主要产品 Major Products
充电枪系列Charging Gun Series

欧标直流充电枪European DC Charging Gun

电流类型Current Type直流DC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
20A~350A;300A/400A/500A(液冷)20A–350A; 300A / 400A / 500A (liquid-cooled)
额定工作电压Rated Operating Voltage
1000V DC1000V DC
绝缘电阻Insulation Resistance
≥500MΩ(DC1000V)≥500MΩ (DC1000V)
介电强度Dielectric Strength
3500V AC 漏电流 ≤10mA3500V AC, leakage current ≤10mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 EN 60332-1-2 2004 规定Complies with EN 60332-1-2: 2004
防护等级Protection Rating
IP55 工作状态;IP67 充电枪壳体内部IP55 (operating); IP67 (gun body interior)
液冷介质Coolant Medium
水+乙二醇Water + Ethylene Glycol
产品设计依据Design Standards
IEC 62196-1-2022/IEC 62196-3-2022/IEC TS 62196-3-1-2020IEC 62196-1-2022 / IEC 62196-3-2022 / IEC TS 62196-3-1-2020
主要产品 Major Products
充电枪系列Charging Gun Series

小直流充电枪Compact DC Charging Gun

电流类型Current Type直流DC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
20A/32A/63A20A / 32A / 63A
额定工作电压Rated Operating Voltage
750V/1000V DC750V / 1000V DC
绝缘电阻Insulation Resistance
≥2000MΩ(DC1000V)≥2000MΩ (DC1000V)
介电强度Dielectric Strength
3500V AC 漏电流 ≤10mA3500V AC, leakage current ≤10mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<140N<140N
线缆固定拉脱力Cable Retention Force
>250N>250N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态;枪体 IP67IP55 (operating); IP67 (gun body)
产品设计依据Design Standards
GB/T 20234.1-2015/GB/T 20234.3-2015GB/T 20234.1-2015 / GB/T 20234.3-2015
主要产品 Major Products
充电枪系列Charging Gun Series

国标直流充电枪GB Standard DC Charging Gun

电流类型Current Type直流DC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
80A/125A/200A/250A/300A80A / 125A / 200A / 250A / 300A
额定工作电压Rated Operating Voltage
750V/1000V DC750V / 1000V DC
绝缘电阻Insulation Resistance
≥100MΩ(DC1000V)≥100MΩ (DC1000V)
介电强度Dielectric Strength
3500V AC 漏电流 ≤10mA3500V AC, leakage current ≤10mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<140N<140N
线缆固定拉脱力Cable Retention Force
>250N>250N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态IP55 (operating)
产品设计依据Design Standards
GB/T 20234.1-2023/GB/T 20234.3-2023GB/T 20234.1-2023 / GB/T 20234.3-2023
主要产品 Major Products
充电枪系列Charging Gun Series

比亚迪欧标充电枪BYD European AC Charging Gun

电流类型Current Type交流AC颜色Colour黑/白/灰Black / White / Grey
额定工作电流Rated Operating Current
13A/20A/32A13A / 20A / 32A
额定工作电压Rated Operating Voltage
单相 250V AC/三相 480V ACSingle-phase 250V AC / Three-phase 480V AC
绝缘电阻Insulation Resistance
≥500MΩ(DC1000V)≥500MΩ (DC1000V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 EN 60332-1-2 2004 规定Complies with EN 60332-1-2: 2004
防护等级Protection Rating
IP55 工作状态IP55 (operating)
产品设计依据Design Standards
IEC 62196-1-2014/IEC 62196-2-2016IEC 62196-1-2014 / IEC 62196-2-2016
主要产品 Major Products
充电枪系列Charging Gun Series

美标充电枪North American AC Charging Gun

电流类型Current Type交流AC
额定工作电流Rated Operating Current
16A/32A/40A16A / 32A / 40A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥500MΩ(DC500V)≥500MΩ (DC500V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 UL 62-2018 规定Complies with UL 62-2018
防护等级Protection Rating
IP55 工作状态;枪体 IP67IP55 (operating); IP67 (gun body)
产品设计依据Design Standards
IEC 62196-1-2022/IEC 62196-2-2022/UL 2251-2013IEC 62196-1-2022 / IEC 62196-2-2022 / UL 2251-2013
主要产品 Major Products
充电枪系列Charging Gun Series

四代交流充电枪4th Generation AC Charging Gun

电流类型Current Type交流AC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
10A/16A/32A10A / 16A / 32A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥500MΩ(DC1000V)≥500MΩ (DC1000V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N(32A);>160N(10A/16A)>200N (32A); >160N (10A / 16A)
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态;枪体 IP68IP55 (operating); IP68 (gun body)
产品设计依据Design Standards
GB/T 20234.1-2023/GB/T 20234.2-2015GB/T 20234.1-2023 / GB/T 20234.2-2015
主要产品 Major Products
充电枪系列Charging Gun Series

昊铂模式二AION (Haobo) Mode 2 Charging Gun

电流类型Current Type交流AC颜色Colour深夜蓝Midnight Blue
额定工作电流Rated Operating Current
8A/13A8A / 13A
额定工作电压Rated Operating Voltage
220V AC 50Hz220V AC 50Hz
绝缘电阻Insulation Resistance
≥10MΩ(DC1000V)≥10MΩ (DC1000V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态IP55 (operating)
产品设计依据Design Standards
GB/T 20234.1-2015/GB/T 20234.2-2015/GB/T 18487.1-2015GB/T 20234.1-2015 / GB/T 20234.2-2015 / GB/T 18487.1-2015
主要产品 Major Products
充电枪系列Charging Gun Series

仰望交流充电枪YANGWANG AC Charging Gun

电流类型Current Type交流AC
额定工作电流Rated Operating Current
10A/16A/32A10A / 16A / 32A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥1000MΩ(DC500V)≥1000MΩ (DC500V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤3mA2500V AC, leakage current ≤3mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态;IP68 充电枪整体IP55 (operating); IP68 (full gun body)
产品设计依据Design Standards
GB/T 20234.1-2015/GB/T 20234.2-2015GB/T 20234.1-2015 / GB/T 20234.2-2015
主要产品 Major Products
充电枪系列Charging Gun Series

比亚迪交流充电枪BYD AC Charging Gun

电流类型Current Type交流AC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
10A/16A/32A10A / 16A / 32A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥1000MΩ(DC500V)≥1000MΩ (DC500V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤3mA2500V AC, leakage current ≤3mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态;IP67 枪头高压区域IP55 (operating); IP67 (gun head high-voltage zone)
产品设计依据Design Standards
GB/T 20234.1-2015/GB/T 20234.2-2015GB/T 20234.1-2015 / GB/T 20234.2-2015
主要产品 Major Products
充电枪系列Charging Gun Series

三代交流充电枪3rd Generation AC Charging Gun

电流类型Current Type交流AC颜色Colour黑/白Black / White
额定工作电流Rated Operating Current
16A/32A16A / 32A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥1000MΩ(DC500V)≥1000MΩ (DC500V)
介电强度Dielectric Strength
2500V AC 漏电流 ≤5mA2500V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
线缆固定拉脱力Cable Retention Force
>200N>200N
工作环境温度Operating Temperature Range
-40°C~+55°C-40°C to +55°C
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆阻燃试验Cable Flame Retardancy Test
符合 GB/T 18380.12-2008 规定Complies with GB/T 18380.12-2008
防护等级Protection Rating
IP55 工作状态;枪体 IP67IP55 (operating); IP67 (gun body)
产品设计依据Design Standards
GB/T 20234.1-2015/GB/T 20234.2-2015GB/T 20234.1-2015 / GB/T 20234.2-2015
主要产品 Major Products
充电插座系列Charging Inlet Series

欧标交直流一体座European Combined AC/DC Charging Inlet

电流类型Current Type交直流AC / DC
额定工作电流Rated Operating Current
150A/250A/300A(DC);32A(AC)150A / 250A / 300A (DC); 32A (AC)
额定工作电压Rated Operating Voltage
1000V DC/250V AC1000V DC / 250V AC
绝缘电阻Insulation Resistance
≥500MΩ(DC1000V)≥500MΩ (DC1000V)
介电强度Dielectric Strength
2000V AC 漏电流 ≤5mA2000V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
工作环境温度Operating Temperature Range
-30°C~+50°C-30°C to +50°C
防护等级Protection Rating
IP55(插合)IP55 (mated)
温度检测Temperature Sensing
NTC/AS23-43ANTC / AS23-43A
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
产品设计依据Design Standards
IEC 62196-1-2022/IEC 62196-3-2022IEC 62196-1-2022 / IEC 62196-3-2022
主要产品 Major Products
充电插座系列Charging Inlet Series

国标直流充电插座GB Standard DC Charging Inlet

电流类型Current Type直流DC
额定工作电流Rated Operating Current
125A/250A125A / 250A
额定工作电压Rated Operating Voltage
750V DC750V DC
绝缘电阻Insulation Resistance
≥2000MΩ(DC1000V)≥2000MΩ (DC1000V)
介电强度Dielectric Strength
3500V AC 漏电流 ≤10mA3500V AC, leakage current ≤10mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<140N<140N
工作环境温度Operating Temperature Range
-30°C~+50°C-30°C to +50°C
防护等级Protection Rating
IP55(插合)IP55 (mated)
温度检测Temperature Sensing
NTC/AS23-43ANTC / AS23-43A
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
产品设计依据Design Standards
GB/T 20234.1-2023/GB/T 20234.3-2023GB/T 20234.1-2023 / GB/T 20234.3-2023
主要产品 Major Products
充电插座系列Charging Inlet Series

国标交流充电插座GB Standard AC Charging Inlet

电流类型Current Type交流AC
额定工作电流Rated Operating Current
16A/32A16A / 32A
额定工作电压Rated Operating Voltage
250V AC250V AC
绝缘电阻Insulation Resistance
≥1000MΩ(DC500V)≥1000MΩ (DC500V)
介电强度Dielectric Strength
2000V AC 漏电流 ≤5mA2000V AC, leakage current ≤5mA
端子温升Terminal Temperature Rise
<50K<50K
机械寿命Mechanical Service Life
>10000次>10,000 cycles
插拔力Mating / Unmating Force
<100N<100N
工作环境温度Operating Temperature Range
-30°C~+50°C-30°C to +50°C
防护等级Protection Rating
IP55(插合)IP55 (mated)
温度检测Temperature Sensing
NTC/AS23-43ANTC / AS23-43A
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
产品设计依据Design Standards
GB/T 20234.1-2023/GB/T 20234.2-2023GB/T 20234.1-2023 / GB/T 20234.2-2023
主要产品 Major Products
高压线缆系列High-Voltage Cable Series

国标/欧标电动汽车用交流充电电缆GB / IEC Standard EV AC Charging Cable

护套颜色Jacket Colour橙色/黑色Orange / Black
型号Model
EV-(R)SS/EV-(R)S90S90/EV-(R)S90U/H07BZ5EV-(R)SS / EV-(R)S90S90 / EV-(R)S90U / H07BZ5
参考标准Reference Standard
GB/T 33594GB/T 33594
导体Conductor
第五类/第六类软导体Class 5 / Class 6 Flexible Conductor
绝缘Insulation
TPETPE
外被Jacket
TPE/TPUTPE / TPU
额定温度Rated Temperature
-40℃~+90℃-40°C to +90°C
额定电压Rated Voltage
AC 450V/750VAC 450V / 750V
耐电压Withstand Voltage
2.5KV AC/15min,不击穿2.5kV AC / 15 min, no puncture
低温弯曲Low-Temperature Flexibility
-40°C/16h,不开裂-40°C / 16h, no cracking
热冲击Thermal Shock Resistance
150°C/1h,不开裂150°C / 1h, no cracking
最小弯曲半径Minimum Bending Radius
≥6*OD≥6×OD
环保/产品认证Environmental & Product Certifications
符合 CQC、2 PfG 1908、RoHS & REACHComplies with CQC, 2 PfG 1908, RoHS & REACH
产品图片
拖入图片
主要产品 Major Products
高压线缆系列High-Voltage Cable Series

国标/欧标电动汽车用直流充电电缆GB / IEC Standard EV DC Charging Cable

护套颜色Jacket Colour橙色/黑色Orange / Black
型号Model
EVDC-(R)S90S90/EVDC-(R)EYU/EVDC-(R)S90U/62893 IEC 126EVDC-(R)S90S90 / EVDC-(R)EYU / EVDC-(R)S90U / 62893 IEC 126
参考标准Reference Standard
GB/T 33594GB/T 33594
导体Conductor
第五类/第六类软导体Class 5 / Class 6 Flexible Conductor
绝缘Insulation
TPE/XLPETPE / XLPE
外被Jacket
TPE/TPUTPE / TPU
额定温度Rated Temperature
-40°C~+105°C-40°C to +105°C
额定电压Rated Voltage
DC 1000VDC 1000V
耐电压Withstand Voltage
2.5KV AC/15min,不击穿2.5kV AC / 15 min, no puncture
低温弯曲Low-Temperature Flexibility
-40°C/16h,不开裂-40°C / 16h, no cracking
热冲击Thermal Shock Resistance
150°C/1h,不开裂150°C / 1h, no cracking
最小弯曲半径Minimum Bending Radius
≥6*OD≥6×OD
环保/产品认证Environmental & Product Certifications
符合 CQC、IEC 62893、RoHS & REACHComplies with CQC, IEC 62893, RoHS & REACH
产品图片
拖入图片
主要产品 Major Products
高压线缆系列High-Voltage Cable Series

道路车辆用单层绝缘高压线缆(屏蔽型 QZJ-D)Single-Layer Insulated High-Voltage Cable for Road Vehicles (Shielded, QZJ-D)

护套颜色Jacket Colour橙色Orange
型号Model
QZJ-D/XLPOQZJ-D / XLPO
参考标准Reference Standard
GB/T 25085、QC/T 1037、ISO6722GB/T 25085, QC/T 1037, ISO6722
导体Conductor
第五类/第六类软导体Class 5 / Class 6 Flexible Conductor
绝缘Insulation
XLPEXLPE
外被Jacket
XLPEXLPE
额定温度Rated Temperature
-40°C~+150°C-40°C to +150°C
额定电压Rated Voltage
AC 1000V/DC 1500VAC 1000V / DC 1500V
耐电压Withstand Voltage
8KV AC/15min,不击穿8kV AC / 15 min, no puncture
低温弯曲Low-Temperature Flexibility
-15°C/16h,不击穿-15°C / 16h, no puncture
热冲击Thermal Shock Resistance
150°C/4h,不击穿150°C / 4h, no puncture
最小弯曲半径Minimum Bending Radius
4*OD@≤20mm;6*OD@>20mm4×OD @ ≤20mm; 6×OD @ >20mm
环保认证Environmental Compliance
符合 ROHS & REACHComplies with RoHS & REACH
产品图片
拖入图片
主要产品 Major Products
高压线缆系列High-Voltage Cable Series

道路车辆用单层绝缘高压线缆(屏蔽型 QZJP2-D)Single-Layer Insulated High-Voltage Cable for Road Vehicles (Shielded, QZJP2-D)

护套颜色Jacket Colour橙色Orange
型号Model
QZJP2-D/XLPOQZJP2-D / XLPO
参考标准Reference Standard
GB/T 25085、QC/T 1037、ISO6722GB/T 25085, QC/T 1037, ISO6722
导体Conductor
第五类/第六类软导体Class 5 / Class 6 Flexible Conductor
绝缘Insulation
XLPEXLPE
外被Jacket
XLPEXLPE
额定温度Rated Temperature
-40°C~+150°C-40°C to +150°C
额定电压Rated Voltage
AC 1000V/DC 1500VAC 1000V / DC 1500V
耐电压Withstand Voltage
8KV AC/15min,不击穿8kV AC / 15 min, no puncture
低温弯曲Low-Temperature Flexibility
-15°C/16h,不击穿-15°C / 16h, no puncture
热冲击Thermal Shock Resistance
150°C/4h,不击穿150°C / 4h, no puncture
最小弯曲半径Minimum Bending Radius
4*OD@≤20mm;6*OD@>20mm4×OD @ ≤20mm; 6×OD @ >20mm
环保认证Environmental Compliance
符合 ROHS & REACHComplies with RoHS & REACH
产品图片
拖入图片
主要产品 Major Products
高压线缆系列High-Voltage Cable Series

液冷超充充电电缆Liquid-Cooled Ultra-Fast Charging Cable

护套颜色Jacket Colour橙色Orange
型号Model
EVLCCX-(R)EYU-(Type B)/EVLCCX-(R)EYU-(Type D)EVLCCX-(R)EYU-(Type B) / EVLCCX-(R)EYU-(Type D)
参考标准Reference Standard
GB/T 33594 & CQC1147GB/T 33594 & CQC1147
导体Conductor
第五类/第六类导体Class 5 / Class 6 Flexible Conductor
绝缘Insulation
XLPO/ETFEXLPO / ETFE
液冷管Liquid Cooling Tube
XLPO/ETFEXLPO / ETFE
外被Jacket
TPUTPU
额定电压Rated Voltage
1.5KV1.5kV
耐电压Withstand Voltage
8.4KV/5min,不击穿8.4kV / 5 min, no puncture
低温弯曲Low-Temperature Flexibility
-40℃/16h,不开裂-40°C / 16h, no cracking
热冲击Thermal Shock Resistance
150℃/1h,不开裂150°C / 1h, no cracking
最小弯曲半径Minimum Bending Radius
≥6*OD≥6×OD
环保/产品认证Environmental & Product Certifications
符合 CQC、RoHS & REACHComplies with CQC, RoHS & REACH
产品图片
拖入图片
主要产品 Major Products
高压线束系列High-Voltage Wiring Harness Series

电机控制器高压线束Motor Controller High-Voltage Wiring Harness

额定工作电流Rated Operating Current
100A100A
额定工作电压Rated Operating Voltage
200V200V
绝缘电阻Insulation Resistance
≥1000MΩ(DC1000V)≥1000MΩ (DC1000V)
介电强度Dielectric Strength
3000V AC 漏电流 ≤10mA3000V AC, leakage current ≤10mA
工作环境温度Operating Temperature Range
-40°C~+120°C-40°C to +120°C
防护等级Protection Rating
IP67(插合状态)IP67 (mated)
端子温升Terminal Temperature Rise
<50K<50K
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆规格Cable Cross-Section
25mm²25mm²
功能Function
实现电机与电机控制器的电能传输Power transmission between motor and motor controller
产品图片
拖入图片
主要产品 Major Products
高压线束系列High-Voltage Wiring Harness Series

动力电池高压线束Power Battery High-Voltage Wiring Harness

额定工作电流Rated Operating Current
100A100A
额定工作电压Rated Operating Voltage
200V200V
绝缘电阻Insulation Resistance
≥1000MΩ(DC1000V)≥1000MΩ (DC1000V)
介电强度Dielectric Strength
3000V AC 漏电流 ≤10mA3000V AC, leakage current ≤10mA
工作环境温度Operating Temperature Range
-40°C~+120°C-40°C to +120°C
防护等级Protection Rating
IP67(插合状态)IP67 (mated)
端子温升Terminal Temperature Rise
<50K<50K
胶壳阻燃等级Housing Flame Retardancy Rating
UL94 V-0UL94 V-0
线缆规格Cable Cross-Section
25mm²25mm²
功能Function
实现动力电池与PDU的电能传输Power transmission between battery pack and PDU
产品图片
拖入图片
